# YOLOv8 with Ultralytics Full Version

# 克隆与安装

git clone https://github.com/ultralytics/ultralytics.git
conda install -c pytorch -c nvidia -c conda-forge pytorch torchvision pytorch-cuda=11.8 ultralytics
1

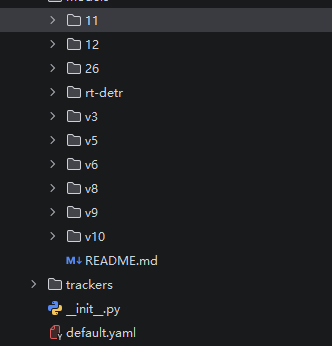

Ultralytics 根项目与之前纯粹的 v5 项目不同，它包含了全部的 YOLO 版本。

在根目录创建 detect.py：

from ultralytics import YOLO
model = YOLO("yolov8s.pt")
model.predict(source=0, show=True)
三行代码即可调用摄像头检测。


通过：


model.info(verbose=True)
print(model.model)
即可查看模型结构：


YOLOv8s summary: 129 layers, 11,166,560 parameters, 0 gradients
DetectionModel(
  (model): Sequential(

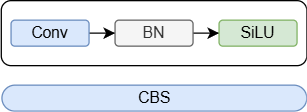

    (0): Conv(
      (conv): Conv2d(3, 32, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (bn): BatchNorm2d(32, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
      (act): SiLU(inplace=True)
    )
    (1): Conv(
      (conv): Conv2d(32, 64, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
      (act): SiLU(inplace=True)
    )

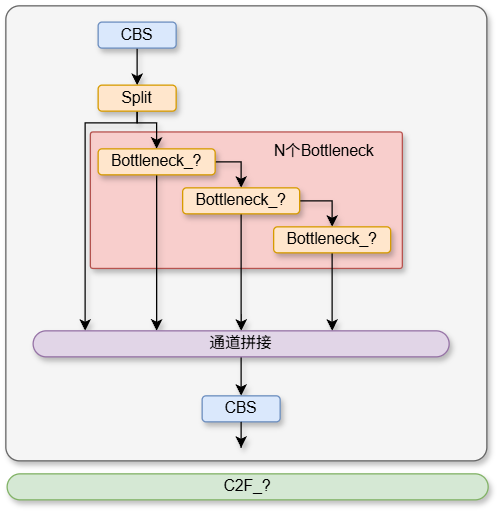

    (2): C2f(
      (cv1): Conv(
        (conv): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (cv2): Conv(
        (conv): Conv2d(96, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (m): ModuleList(

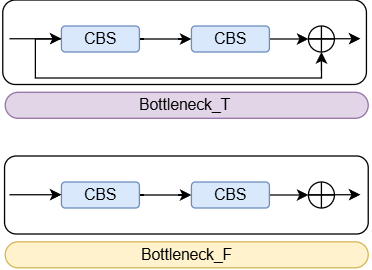

        (0): Bottleneck(
          (cv1): Conv(
            (conv): Conv2d(32, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(32, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (cv2): Conv(
            (conv): Conv2d(32, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(32, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
        )
      )
    )
    (3): Conv(
      (conv): Conv2d(64, 128, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
      (act): SiLU(inplace=True)
    )
    (4): C2f(
      (cv1): Conv(
        (conv): Conv2d(128, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (cv2): Conv(
        (conv): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (m): ModuleList(
        (0-1): 2 x Bottleneck(
          (cv1): Conv(
            (conv): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (cv2): Conv(
            (conv): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
        )
      )
    )
    (5): Conv(
      (conv): Conv2d(128, 256, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
      (act): SiLU(inplace=True)
    )
    (6): C2f(
      (cv1): Conv(
        (conv): Conv2d(256, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (cv2): Conv(
        (conv): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (m): ModuleList(
        (0-1): 2 x Bottleneck(
          (cv1): Conv(
            (conv): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (cv2): Conv(
            (conv): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
        )
      )
    )
    (7): Conv(
      (conv): Conv2d(256, 512, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (bn): BatchNorm2d(512, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
      (act): SiLU(inplace=True)
    )
    (8): C2f(
      (cv1): Conv(
        (conv): Conv2d(512, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(512, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (cv2): Conv(
        (conv): Conv2d(768, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(512, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (m): ModuleList(
        (0): Bottleneck(
          (cv1): Conv(
            (conv): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (cv2): Conv(
            (conv): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
        )
      )
    )

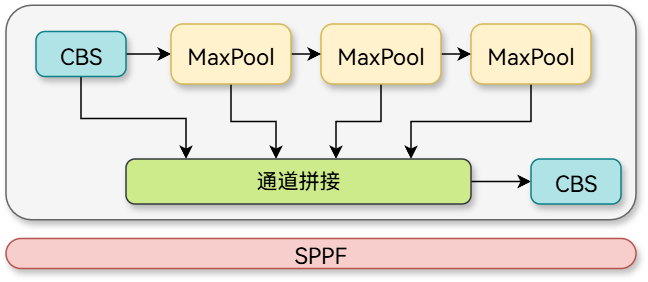

    (9): SPPF(
      (cv1): Conv(
        (conv): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (cv2): Conv(
        (conv): Conv2d(1024, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(512, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (m): MaxPool2d(kernel_size=5, stride=1, padding=2, dilation=1, ceil_mode=False)
    )
    (10): Upsample(scale_factor=2.0, mode='nearest')
    (11): Concat()
    (12): C2f(
      (cv1): Conv(
        (conv): Conv2d(768, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (cv2): Conv(
        (conv): Conv2d(384, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (m): ModuleList(
        (0): Bottleneck(
          (cv1): Conv(
            (conv): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (cv2): Conv(
            (conv): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
        )
      )
    )
    (13): Upsample(scale_factor=2.0, mode='nearest')
    (14): Concat()
    (15): C2f(
      (cv1): Conv(
        (conv): Conv2d(384, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (cv2): Conv(
        (conv): Conv2d(192, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (m): ModuleList(
        (0): Bottleneck(
          (cv1): Conv(
            (conv): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (cv2): Conv(
            (conv): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
        )
      )
    )
    (16): Conv(
      (conv): Conv2d(128, 128, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
      (act): SiLU(inplace=True)
    )
    (17): Concat()
    (18): C2f(
      (cv1): Conv(
        (conv): Conv2d(384, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (cv2): Conv(
        (conv): Conv2d(384, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (m): ModuleList(
        (0): Bottleneck(
          (cv1): Conv(
            (conv): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (cv2): Conv(
            (conv): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
        )
      )
    )
    (19): Conv(
      (conv): Conv2d(256, 256, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
      (act): SiLU(inplace=True)
    )
    (20): Concat()
    (21): C2f(
      (cv1): Conv(
        (conv): Conv2d(768, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(512, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (cv2): Conv(
        (conv): Conv2d(768, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (bn): BatchNorm2d(512, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
        (act): SiLU(inplace=True)
      )
      (m): ModuleList(
        (0): Bottleneck(
          (cv1): Conv(
            (conv): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (cv2): Conv(
            (conv): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(256, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
        )
      )
    )
    (22): Detect(
      (cv2): ModuleList(
        (0): Sequential(
          (0): Conv(
            (conv): Conv2d(128, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (1): Conv(
            (conv): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (2): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1))
        )
        (1): Sequential(
          (0): Conv(
            (conv): Conv2d(256, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (1): Conv(
            (conv): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (2): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1))
        )
        (2): Sequential(
          (0): Conv(
            (conv): Conv2d(512, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (1): Conv(
            (conv): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(64, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (2): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1))
        )
      )
      (cv3): ModuleList(
        (0): Sequential(
          (0): Conv(
            (conv): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (1): Conv(
            (conv): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (2): Conv2d(128, 80, kernel_size=(1, 1), stride=(1, 1))
        )
        (1): Sequential(
          (0): Conv(
            (conv): Conv2d(256, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (1): Conv(
            (conv): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (2): Conv2d(128, 80, kernel_size=(1, 1), stride=(1, 1))
        )
        (2): Sequential(
          (0): Conv(
            (conv): Conv2d(512, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (1): Conv(
            (conv): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
            (bn): BatchNorm2d(128, eps=0.001, momentum=0.03, affine=True, track_running_stats=True)
            (act): SiLU(inplace=True)
          )
          (2): Conv2d(128, 80, kernel_size=(1, 1), stride=(1, 1))
        )
      )
      (dfl): DFL(
        (conv): Conv2d(16, 1, kernel_size=(1, 1), stride=(1, 1), bias=False)
      )
    )
  )
)
这模型我说白了，打眼一看就是 CBS、CBS、CBS…


# 看看模型


大部分内容与之前的版本大差不差，详情可看我之前的文章。


# CBS


class Conv(nn.Module):
    """Standard convolution module with batch normalization and activation.
    Attributes:
        conv (nn.Conv2d): Convolutional layer.
        bn (nn.BatchNorm2d): Batch normalization layer.
        act (nn.Module): Activation function layer.
        default_act (nn.Module): Default activation function (SiLU).
    """
    default_act = nn.SiLU()  # default activation
    def __init__(self, c1, c2, k=1, s=1, p=None, g=1, d=1, act=True):
        """Initialize Conv layer with given parameters.
        Args:
            c1 (int): Number of input channels.
            c2 (int): Number of output channels.
            k (int): Kernel size.
            s (int): Stride.
            p (int, optional): Padding.
            g (int): Groups.
            d (int): Dilation.
            act (bool | nn.Module): Activation function.
        """
        super().__init__()
        self.conv = nn.Conv2d(c1, c2, k, s, autopad(k, p, d), groups=g, dilation=d, bias=False)
        self.bn = nn.BatchNorm2d(c2)
        self.act = self.default_act if act is True else act if isinstance(act, nn.Module) else nn.Identity()
    def forward(self, x):
        """Apply convolution, batch normalization and activation to input tensor.
        Args:
            x (torch.Tensor): Input tensor.
        Returns:
            (torch.Tensor): Output tensor.
        """
        return self.act(self.bn(self.conv(x)))
    def forward_fuse(self, x):
        """Apply convolution and activation without batch normalization.
        Args:
            x (torch.Tensor): Input tensor.
        Returns:
            (torch.Tensor): Output tensor.
        """
        return self.act(self.conv(x))
1

# Bottleneck_T and Bottleneck_F


class Bottleneck(nn.Module):
    """Standard bottleneck."""
    def __init__(
        self, c1: int, c2: int, shortcut: bool = True, g: int = 1, k: tuple[int, int] = (3, 3), e: float = 0.5
    ):
        """Initialize a standard bottleneck module.
        Args:
            c1 (int): Input channels.
            c2 (int): Output channels.
            shortcut (bool): Whether to use shortcut connection.
            g (int): Groups for convolutions.
            k (tuple): Kernel sizes for convolutions.
            e (float): Expansion ratio.
        """
        super().__init__()
        c_ = int(c2 * e)  # hidden channels
        self.cv1 = Conv(c1, c_, k[0], 1)
        self.cv2 = Conv(c_, c2, k[1], 1, g=g)
        self.add = shortcut and c1 == c2
    def forward(self, x: torch.Tensor) -> torch.Tensor:
        """Apply bottleneck with optional shortcut connection."""
        return x + self.cv2(self.cv1(x)) if self.add else self.cv2(self.cv1(x))
1

# C2F_T and C2F_F


class C2f(nn.Module):
    """Faster Implementation of CSP Bottleneck with 2 convolutions."""
    def __init__(self, c1: int, c2: int, n: int = 1, shortcut: bool = False, g: int = 1, e: float = 0.5):
        """Initialize a CSP bottleneck with 2 convolutions.
        Args:
            c1 (int): Input channels.
            c2 (int): Output channels.
            n (int): Number of Bottleneck blocks.
            shortcut (bool): Whether to use shortcut connections.
            g (int): Groups for convolutions.
            e (float): Expansion ratio.
        """
        super().__init__()
        self.c = int(c2 * e)  # hidden channels
        self.cv1 = Conv(c1, 2 * self.c, 1, 1)
        self.cv2 = Conv((2 + n) * self.c, c2, 1)  # optional act=FReLU(c2)
        self.m = nn.ModuleList(Bottleneck(self.c, self.c, shortcut, g, k=((3, 3), (3, 3)), e=1.0) for _ in range(n))
    def forward(self, x: torch.Tensor) -> torch.Tensor:
        """Forward pass through C2f layer."""
        y = list(self.cv1(x).chunk(2, 1))
        y.extend(m(y[-1]) for m in self.m)
        return self.cv2(torch.cat(y, 1))
    def forward_split(self, x: torch.Tensor) -> torch.Tensor:
        """Forward pass using split() instead of chunk()."""
        y = self.cv1(x).split((self.c, self.c), 1)
        y = [y[0], y[1]]
        y.extend(m(y[-1]) for m in self.m)
        return self.cv2(torch.cat(y, 1))
chunk(2, 1)： y = list(self.cv1(x).chunk(2, 1))  在通道维度平均切成两份。 - [-1, 6, C2f, [256, True]]  这里有如果 6 个 Bottleneck。就像这样： self.m = [B1, B2, B3, B4, B5, B6] 。观察： y.extend(m(y[-1]) for m in self.m) ，刚 chunk 后使用的是后一半x2x_2，第一次 Bottleneck 后使用的是 B1 (x2x_2)，第二次执行后使用的是 B2 (B1 (x2x_2))。大概是这样：


[x]
[x1, x2]					 # chunk 后
[x1, x2, B1(x2)]			 # 第一次 y.extend (m (y [-1]) for m in self.m)
[x1, x2, B1(x2), B2(B1(x2))] # 第二次 y.extend (m (y [-1]) for m in self.m)
......
[x1, x2, B1(x2), B2(B1(x2)), B3(B2(B1(x2))),.... , B6(B5(B4(B3(B2(B1(x2))))))] # 第六次
最后：


return self.cv2(torch.cat(y, 1))
把那个列表全拼起来了。牛逼！优雅的代码，太优雅了！

1

# SPPF


class SPPF(nn.Module):
    """Spatial Pyramid Pooling - Fast (SPPF) layer for YOLOv5 by Glenn Jocher."""
    def __init__(self, c1: int, c2: int, k: int = 5, n: int = 3, shortcut: bool = False):
        """Initialize the SPPF layer with given input/output channels and kernel size.
        Args:
            c1 (int): Input channels.
            c2 (int): Output channels.
            k (int): Kernel size.
            n (int): Number of pooling iterations.
            shortcut (bool): Whether to use shortcut connection.
        Notes:
            This module is equivalent to SPP(k=(5, 9, 13)).
        """
        super().__init__()
        c_ = c1 // 2  # hidden channels
        self.cv1 = Conv(c1, c_, 1, 1, act=False)
        self.cv2 = Conv(c_ * (n + 1), c2, 1, 1)
        self.m = nn.MaxPool2d(kernel_size=k, stride=1, padding=k // 2)
        self.n = n
        self.add = shortcut and c1 == c2
    def forward(self, x: torch.Tensor) -> torch.Tensor:
        """Apply sequential pooling operations to input and return concatenated feature maps."""
        y = [self.cv1(x)]
        y.extend(self.m(y[-1]) for _ in range(getattr(self, "n", 3)))
        y = self.cv2(torch.cat(y, 1))
        return y + x if getattr(self, "add", False) else y
这个 cv1  和 cv2  中的 k 与 s 全是 1，完全不改变特征图大小，只改变通道数。通道拼接这里接受了四部分的输入，所以 self.cv2 = Conv(c_ * 4, c2, 1, 1)  中写道： c_ * 4 ，其中 c_ 是第一个 CBS 的输出通道数。

1

# Anchor-Free!


终于把你盼来了哈哈哈，先回顾 Anchor-Based，YOLOv5 的检测头会：




  1. 在每个网格点上
    2.

  2. 预设 3 个 anchor（比如 10×13, 16×30, 33×23）
    3.

  3. 预测：x 偏移、y 偏移、w 缩放、h 缩放。
    4.



也就是说：预测是基于 “某个预设框” 进行修正，就像这样：


bx = sigmoid(tx) + cx
bw = anchor_w * exp(tw)
YOLOv8 不再使用 anchor，每个特征点直接预测，每个点自己决定是不是目标中心，那 YOLOv1 当年不也是没 anchor 吗？有啥本质区别？哈哈表面一样，内核完全不同。YOLOv8 是点 + 分布建模 + 动态匹配。YOLOv8 中心点是固定网格点，但预测框的位置完全由 ltrb 决定。


YOLOv8：




  • 每个特征点都是候选中心
    •

  • 预测的是 l, t, r, b（到边界的距离）
    •

  • 用 DFL 分布回归
    •

  • 动态正负样本分配
    •



相当于特征图上有很多钉子，每个钉子可以向四周拉橡皮筋，谁拉得最准，谁就负责那个目标，我觉得这是最精彩的部分啦！

 1

YOLOv8 觉得：“我为什么要难为模型去猜一个无限精确的点呢？我给它 16 个固定的刻度，让它去做选择题。” 这 16 个值代表距离 0,1,2,3,…,150, 1, 2, 3, \dots, 15，模型输出的是这 16 个刻度的概率分布，就是有点像模糊数学，大概是那样。你可能会想，如果我只需要 yy 左右两个点，为什么要输出 16 个值？因为模型在推理阶段并不知道真实值在哪。它必须在 16 个刻度上全部分布概率，最后通过 ∑yi⋅P(yi)\sum y_i \cdot P(y_i) “算出” 那个它认为最可能的距离。


在 YOLOv8 中，一个方向的实际预测距离（像素）计算公式是：实际像素距离 =DFL 得到的数值 × 当前层的步长。YOLOv8 有三个主要的输出层，每一层负责不同大小的物体。


我们来看最精细的那一层 P3：




  • P3 层的步长：8，意味着特征图缩小了 8 倍。
    •

  • DFL 最大刻度：15。
    •

  • 最大覆盖距离：15×8=12015 \times 8 = \mathbf{120} 像素。
    •







特征图层级
步长
DFL 最大刻度
单向最大覆盖
整个框的最大尺寸






P3
8
15
15 \times 8 = \mathbf
约 240 像素




P4
16
15
15 \times 16 = \mathbf
约 480 像素




P5
32
15
15 \times 32 = \mathbf
约 960 像素






# DFL

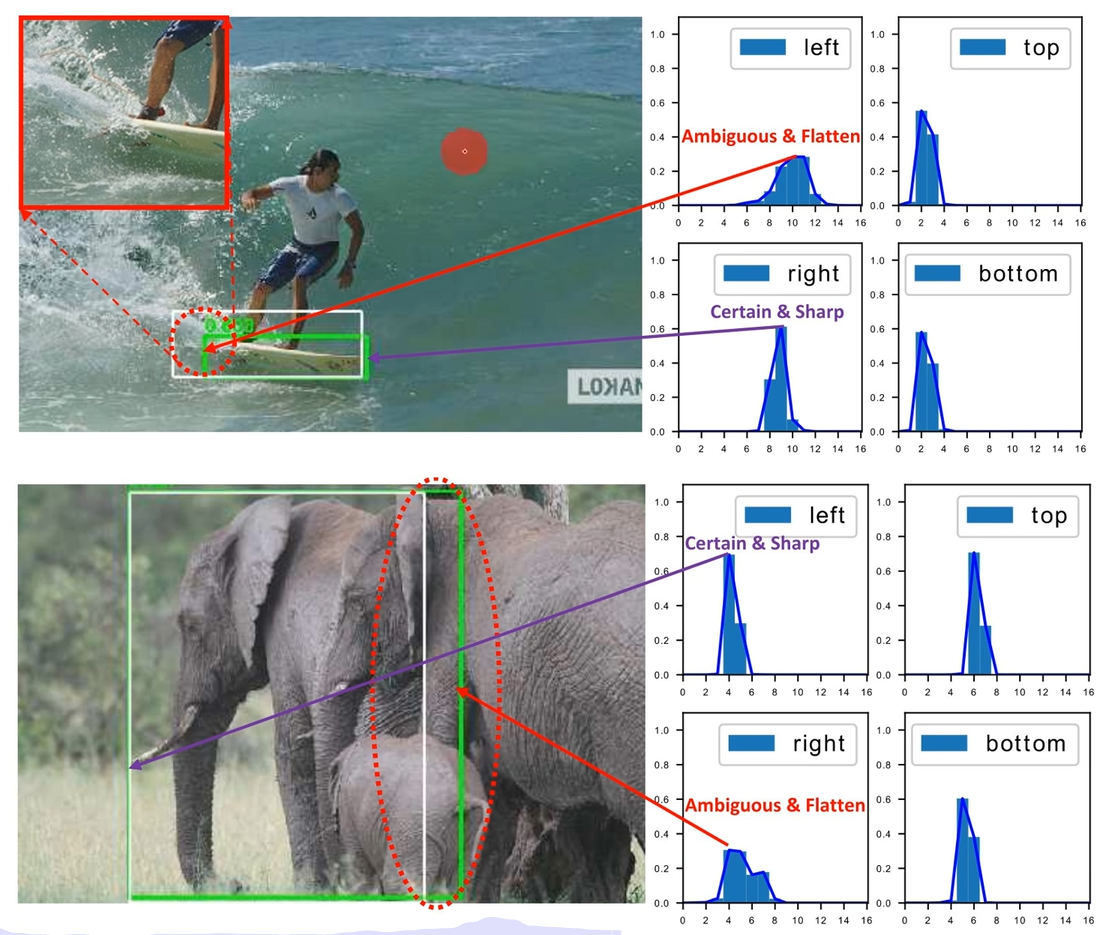

普通回归预测一个值：模型说 “距离是 5.4”。如果实际是 5.7，它只知道自己错了，但不知道边缘到底在哪。DFL 预测分布：模型说 “我有 60% 把握在 5，40% 把握在 6”。


想象你要测量一个物体的长度，我有两种给工具的方式：


方式 A：给你一张白纸，让你自己猜长度并写下来。


方式 B：给你一把有 16 个刻度 的尺子，让你告诉我，物体的边缘落在哪个刻度上。为什么方式 B 更好？ 因为神经网络本质上是一个巨大的分类器。让它从 16 个选项里选（分类），比让它凭空变出一个精准的浮点数（回归）要容易得多。


DFL 的核心思想是将连续的坐标值离散化，YOLOv8 默认将边界框的偏移量划分为 1616 个整数槽位。对于每一个边缘，模型会输出 1616 个值，代表落在这 1616 个位置上的概率。


y=∑i=0nyi⋅P(yi)y = \sum_{i=0}^{n} y_i \cdot P(y_i)



DFL(Pi,Pi+1)=−((yi+1−y)log⁡(Pi)+(y−yi)log⁡(Pi+1))DFL(P_i, P_{i+1}) = - \left( (y_{i+1} - y) \log(P_i) + (y - y_i) \log(P_{i+1}) \right)



yy： 标签（Ground Truth）经过缩放后的浮点坐标。


yi,yi+1y_i, y_{i+1}： yy 两侧最近的整数节点。


Pi,Pi+1P_i, P_{i+1}： 模型预测落在这些节点上的网络输出。


这种分布的形式能够表达不确定性，让模型在面对复杂场景时表现得更加稳健。


为什么 DFL 公式里只用 PiP_i 和 Pi+1P_{i+1}，即 yy 左右两边的概率？因为既然 yy 落在 yiy_i 和 yi+1y_{i+1} 之间，那我们希望模型预测的概率也集中在这两个点上。如果 PiP_i 和 Pi+1P_{i+1} 很大，说明模型预测得非常精准且集中。如果模型在 P0P_0 或 P15P_{15} 上给出了高概率，即便加权平均后的期望值 yy 对了，DFL 也会跳出来大喊：“不对！你预测得太离散了，不确定性太高，罚！”


# 匹配的三步走


TAL 会计算每一个候选中心点的得分 tt，公式如下：


t=sα×uβt = s^{\alpha} \times u^{\beta}



ss 分类得分： 这个点预测出的类别对不对？概率高不高？


uu 定位得分： 这个点用 DFL 预测出来的框，跟真实物体的框重合度高不高？


α,β\alpha, \beta： 权重参数，用来平衡分类和定位的重要性。


第一步，初步筛选：首先，模型会设定一个范围。只有落入物体真实框内的中心点，才有资格参加海选。


第二步，动态打分：对所有入围的点，根据上面的公式计算得分 tt。




  • 如果一个点在物体的边缘，它预测的框可能很歪，得分就低。
    •

  • 如果一个点在物体的正中心，它预测的框通常很准，得分就高。
    •



第三步，择优录取：


对于每一个真实物体，TAL 会选择得分最高的 前 K 个点 作为正样本。




  • 正样本：负责计算分类损失、IoU 损失和 DFL 损失。
    •

  • 负样本：剩下的所有
    •



# 损失函数


Losstotal=λ1Lcls+λ2Liou+λ3LdflLoss_{total} = \lambda_{1} \mathcal{L}_{cls} + \lambda_{2} \mathcal{L}_{iou} + \lambda_{3} \mathcal{L}_{dfl}



Lcls\mathcal{L}_{cls} 分类损失：用的是 VFL，Liou\mathcal{L}_{iou} 定位损失：用的是 CIoU，Ldfl\mathcal{L}_{dfl}：用的是 DFL。


# 参考




  1. 【yolov8 目标检测原理与实战】https://www.bilibili.com/video/BV19nrbYjEyN
    2.

  2. 【ultralytics doc】https://docs.ultralytics.com/
    3.

  3. 【conda】https://anaconda.org/channels/conda-forge/packages/ultralytics/overview
    4.























    更新于



















请我喝[茶]~(￣▽￣)~*






        KarryLiu 微信支付

微信支付






        KarryLiu 支付宝

支付宝
